Type 321 - Bailey Bridge Panel

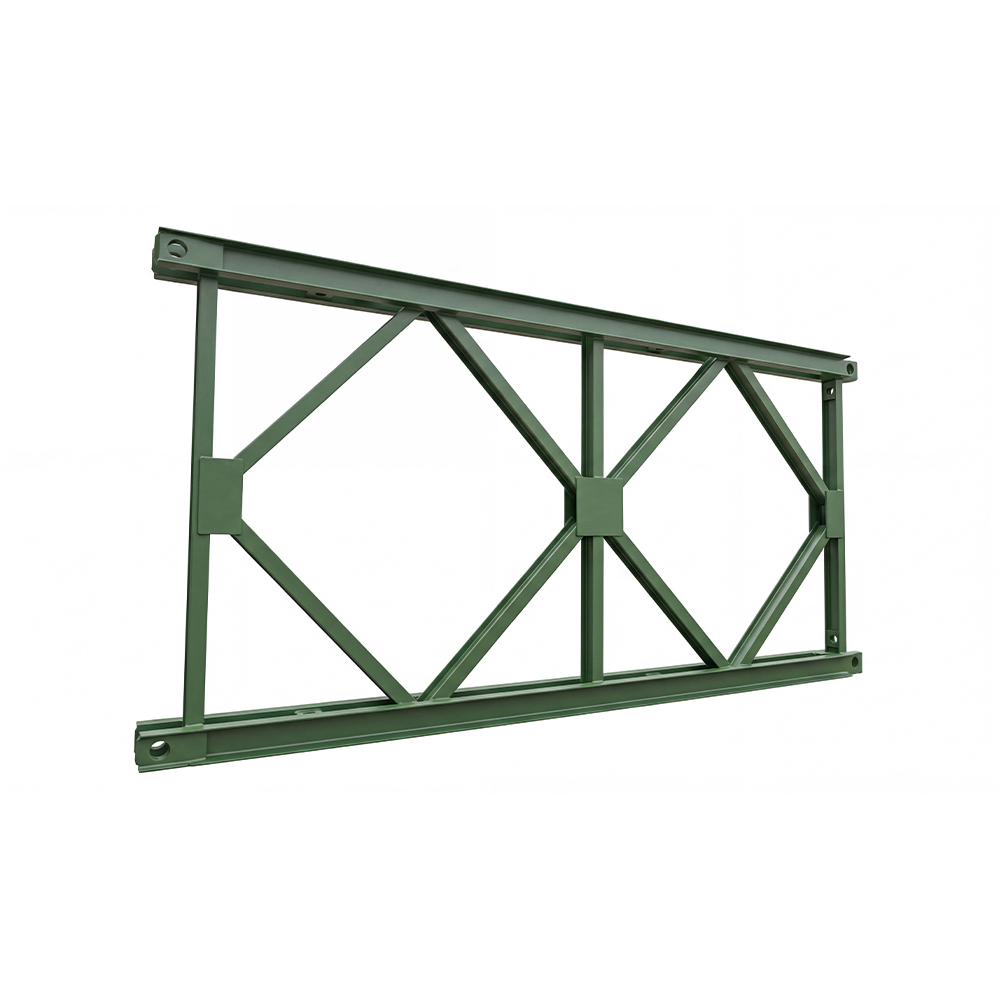

The chord members of the Bailey bridge panels are made of double-section 10# channel steel, and the vertical and diagonal members are made of 8# I-beams.  The entire structure is welded to form a "cross" shape, resulting in a stable and reliable structure that is not prone to twisting or deformation. The theoretical load-bearing capacity of the chord members is 560 KN, the theoretical load-bearing capacity of the vertical members is 560 KN, and the theoretical load-bearing capacity of the diagonal members is 171.5 KN. The Bailey bridge panels serve as the main load-bearing components of the entire bridge and are connected by Bailey pins.

  • Hardware specifications
  • Outer Dimensions

     3115*1500*176mm

    Center Distance Dimensions

     3000*1400mm

    Material

     Q355B
