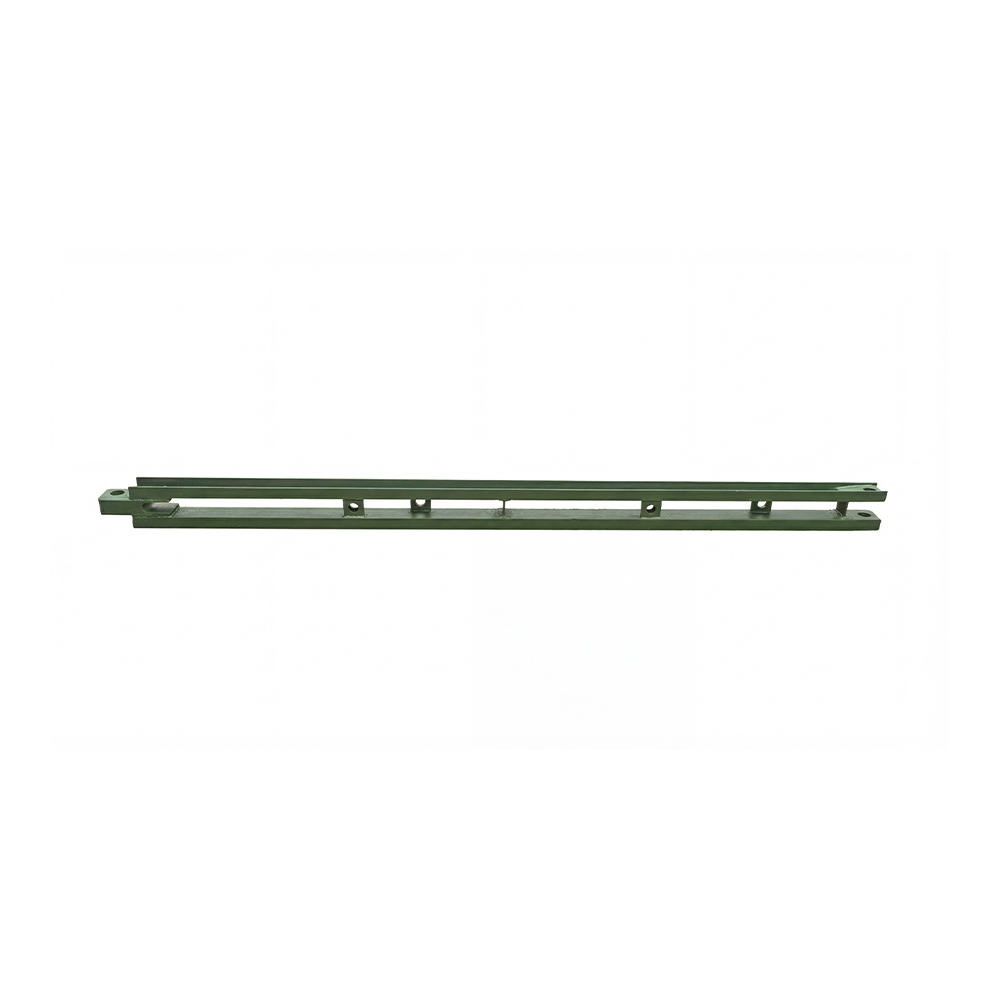

See DetailsType 321 - Reinforced Bailey Truss is a core reinforcing component of the Type 321 prefabricated highway steel bridge and its conventional span truss system. Its primary function is to enhance the bending load capacity of the Bailey bridge panels and expand the applicable load grades of the system. By rigidly connecting to the upper and lower chords of the Type 321 Bailey bridge panels, it significantly strengthens the bending stiffness and deformation resistance of the truss at mid-span.
|
Outer Dimensions |
3115*100*176mm |
|
Center Distance |
3000mm |
|
Material |
Q355B |
