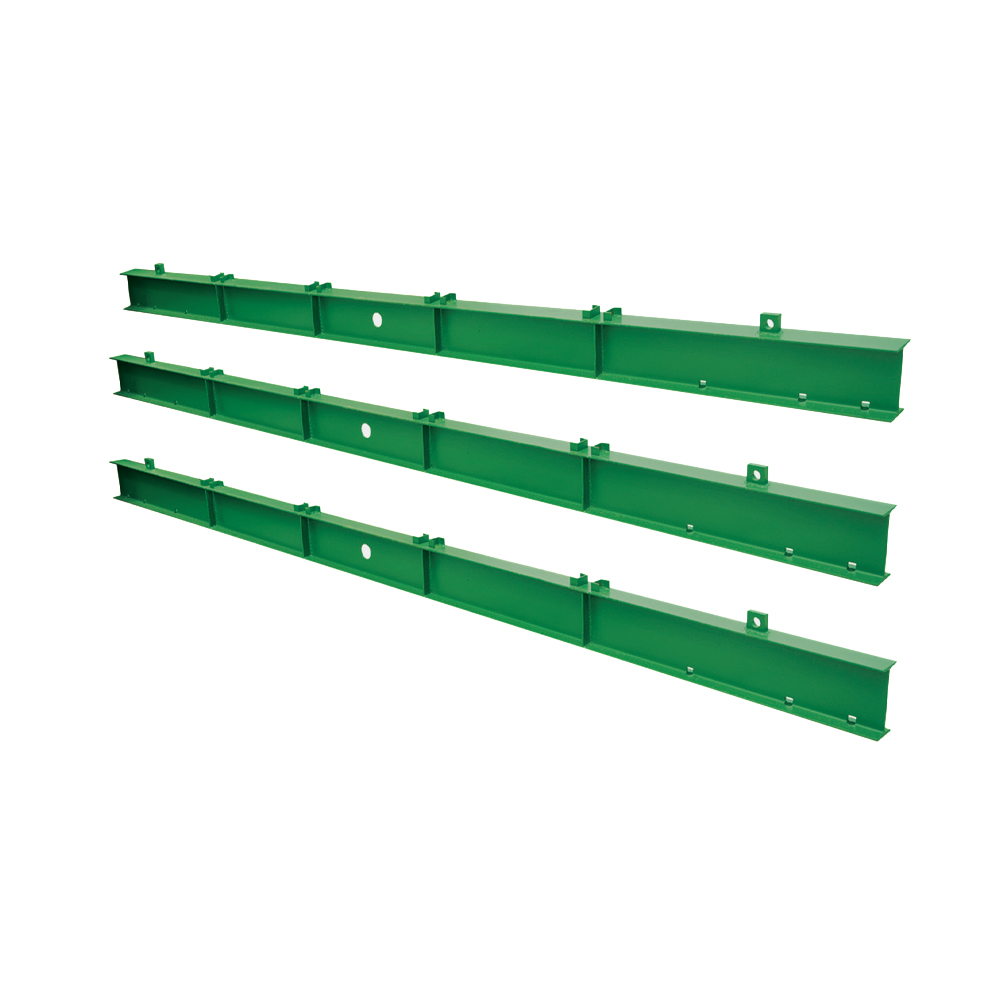

Type 321 - Crossbeam for Bailey bridge

Type 321 - Crossbeam for Bailey bridge: Installed on the lower chord pins of the Bailey bridge panels and secured with crossbeam clamps.  Additionally, each section has one crossbeam connected to the Bailey panel with diagonal braces to form a stable frame structure, preventing displacement and overturning.

  • Hardware specifications
  • Outer Dimensions

     5850*122*360mm

    Center Distance Dimensions

     250+450+4200+450+250mm

    Material

     Q355B
