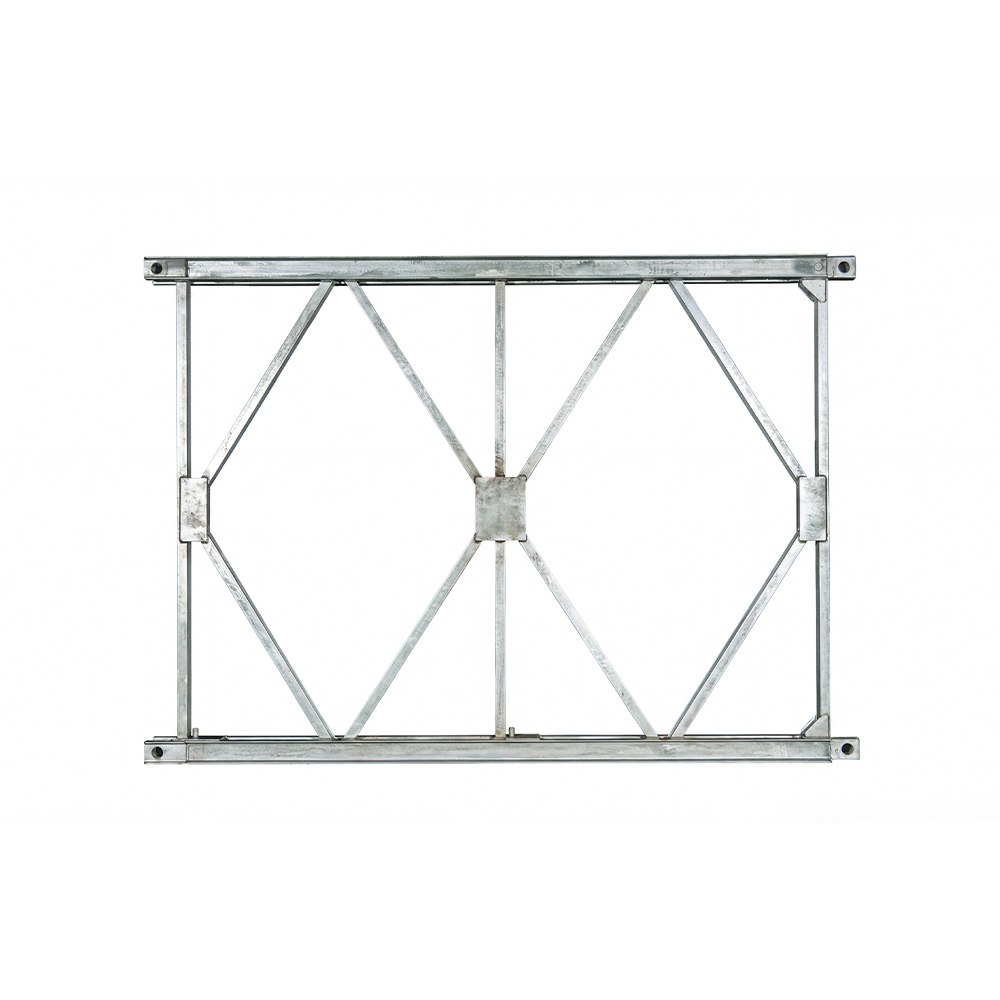

Type HD200 - Bailey Bridge Panel

The HD200 type Bailey bridge panel is primarily designed as a key component for transferring span loads and constructing the main load-bearing frame. Compared to the 321 type, the length and width of the Bailey panel are increased to improve bending resistance, while also increasing the moment of inertia, further reducing the deflection value after product assembly.

  • Hardware specifications
  • Outer Dimensions

     3163*2234*176mm

    Center Distance Dimensions

     3048*2134mm

    Material

     Q355B

ABOUT JINHAO
Zhenjiang Jinhao Road & Bridge Supporting Engineering Co., Ltd.
Zhenjiang Jinhao Road and Bridge Supporting Engineering Co., Ltd. is located in the industrial park of Shangdang Town, Dantu District, Zhenjiang City, near the Beijing Hangzhou Grand Canal and Yangli Expressway, only 15 minutes drive from Zhenjiang High-speed Railway South Station, with convenient geographical transportation location.
The company was established in 2017 . In the early stage, it was engaged in the professional marketing of construction materials, industrial materials and various metal processing materials. With the expansion of its business scope, our company has transformed into the design, manufacturing, erection, leasing and other comprehensive businesses of Bailey bridge, hanging basket, and pier body formwork. Now, the main products are Bailey steel bridge, 321 types, HD200 type, triangle hanging basket, diamond hanging basket, and various steel templates.
Bailey steel temporary bridge is widely used in national defense combat readiness, traffic engineering, municipal engineering, water conservancy engineering and railway engineering. It is a fabricated bridge widely used in the world. It has the characteristics of simple structure, convenient erection, high standardization, strong interchangeability, various structural forms, large bearing capacity, good applicability, etc. It can be combined into temporary bridges, emergency bridges and semi-permanent bridges of various types and purposes according to different spans. It can also use trusses to conveniently form engineering structures and road and bridge equipment such as guide beams, arches, tower columns, gantry hangers, bridge erection machines, building climbing formwork, etc.
We have a good product quality, professional sales and technical management team. If you need our products, we look forward to your online message or call for advice. We warmly welcome the investigation and guidance.
