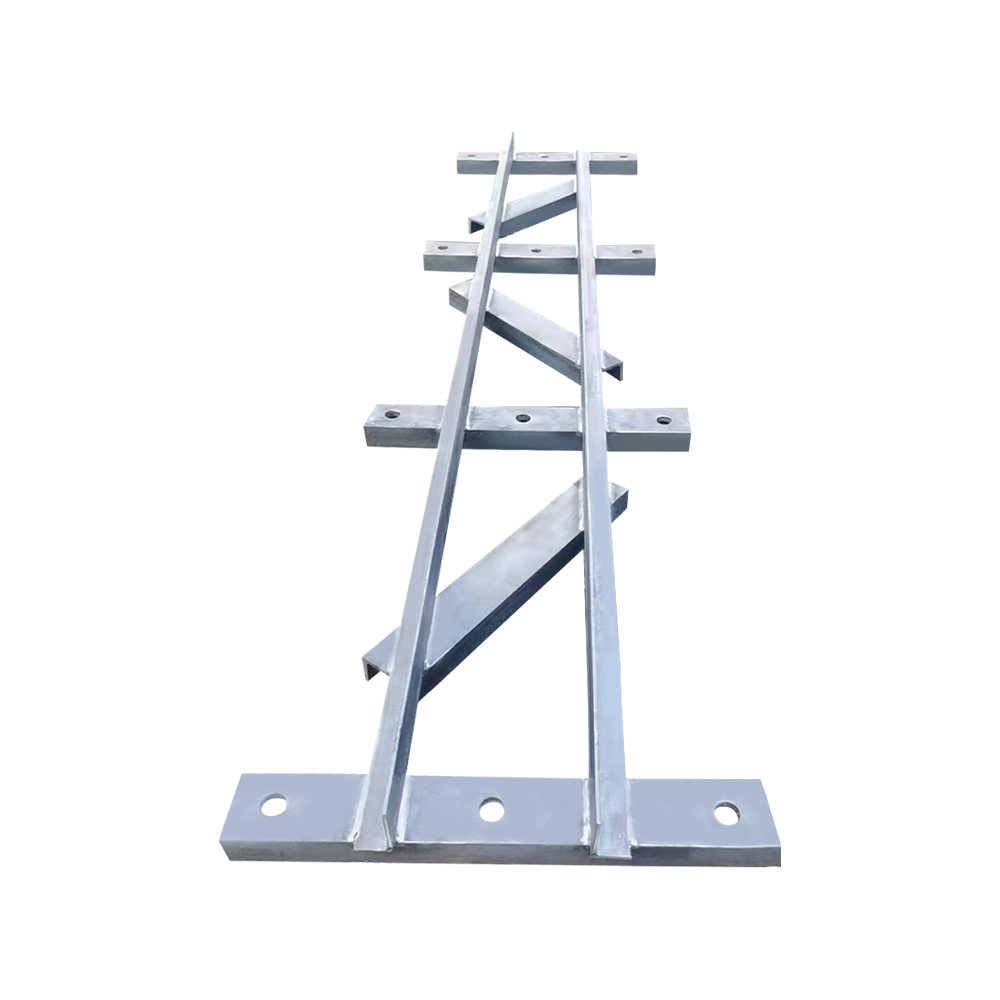

Type HD200 - Horizontal Support Frame For Bailey Bridge

Through horizontal rigid supports, the vertical loads of the superstructure are converted into horizontal restraining forces and transferred to the columns or foundation components, reducing lateral displacement and vibration of the structure.  Simultaneously, it forms a stable truss system with vertical supports and diagonal tension rods, enhancing the overall structure's resistance to overturning and stiffness. This is particularly suitable for deformation control in large-span (9.14-76.2 meters) and heavy-load scenarios. It is applicable to bridge engineering, serving as a horizontal support component for HD200 type Bailey bridges; the 730 type is suitable for wide-span highway bridges and emergency rescue bridges, while the 480 type is suitable for conventional span temporary bridges, enhancing the lateral stability of the truss sections.

  • Hardware specifications
  • External Dimensions 1 (Model 730)

     2386*820*106mm

    External Dimensions 1 (Model 480)

     2386*570*106mm

    Center Distance Dimensions

     762*3 - (250+230+250)mm

    Material

     Q355B
