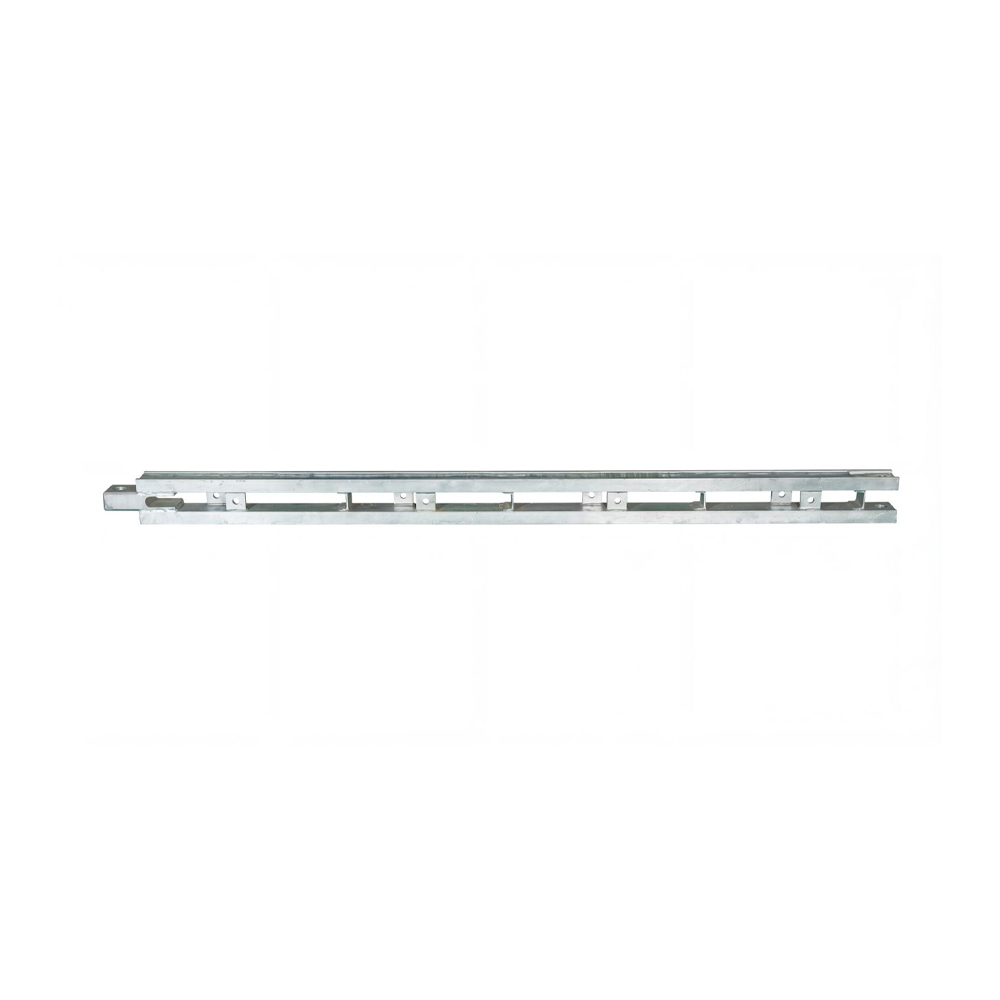

Type HD200 - Reinforced Bailey Truss

The Type HD200 - Reinforced Bailey Truss is a core reinforcing component specifically designed for the HD200 type prefabricated highway steel bridge and heavy-duty truss system. Its primary function is to enhance the bending load-bearing capacity of the truss structure. By precisely connecting with the upper and lower chords of the Bailey bridge panels, it significantly increases the overall stiffness and deformation resistance of the truss. It is suitable for large-span (9.144-60.96m) and heavy-load (HS25 class and above) engineering applications, and is a core component for ensuring structural stability under high bending moment conditions in bridge engineering, large-scale formwork support, and emergency rescue operations. The high load-bearing design requirements of the HD200 truss effectively extend the applicable span and load capacity of the truss system.

PREV:Type HD200 - Horizontal Support Frame For Bailey Bridge
NEXT:Type HD200 - Bailey Bridge Panel

Hardware specifications

Outer Dimensions

3163*100*176mm

Center Distance

3048mm

Material

Q355B

ABOUT JINHAO

Zhenjiang Jinhao Road & Bridge Supporting Engineering Co., Ltd.

Zhenjiang Jinhao Road and Bridge Supporting Engineering Co., Ltd. is located in the industrial park of Shangdang Town, Dantu District, Zhenjiang City, near the Beijing Hangzhou Grand Canal and Yangli Expressway, only 15 minutes drive from Zhenjiang High-speed Railway South Station, with convenient geographical transportation location.
As a professional China Type HD200 - Reinforced Bailey Truss Suppliers and Type HD200 - Reinforced Bailey Truss Factory, the company was established in 2017 . In the early stage, it was engaged in the professional marketing of construction materials, industrial materials and various metal processing materials. With the expansion of its business scope, our company has transformed into the design, manufacturing, erection, leasing and other comprehensive businesses of Bailey bridge, hanging basket, and pier body formwork. Now, the main products are Bailey steel bridge, 321 types, HD200 type, triangle hanging basket, diamond hanging basket, and various steel templates.
Bailey steel temporary bridge is widely used in national defense combat readiness, traffic engineering, municipal engineering, water conservancy engineering and railway engineering. It is a fabricated bridge widely used in the world. It has the characteristics of simple structure, convenient erection, high standardization, strong interchangeability, various structural forms, large bearing capacity, good applicability, etc. It can be combined into temporary bridges, emergency bridges and semi-permanent bridges of various types and purposes according to different spans. It can also use trusses to conveniently form engineering structures and road and bridge equipment such as guide beams, arches, tower columns, gantry hangers, bridge erection machines, building climbing formwork, etc.
We have a good product quality, professional sales and technical management team. If you need our products, we look forward to your online message or call for advice. We warmly welcome the investigation and guidance.
