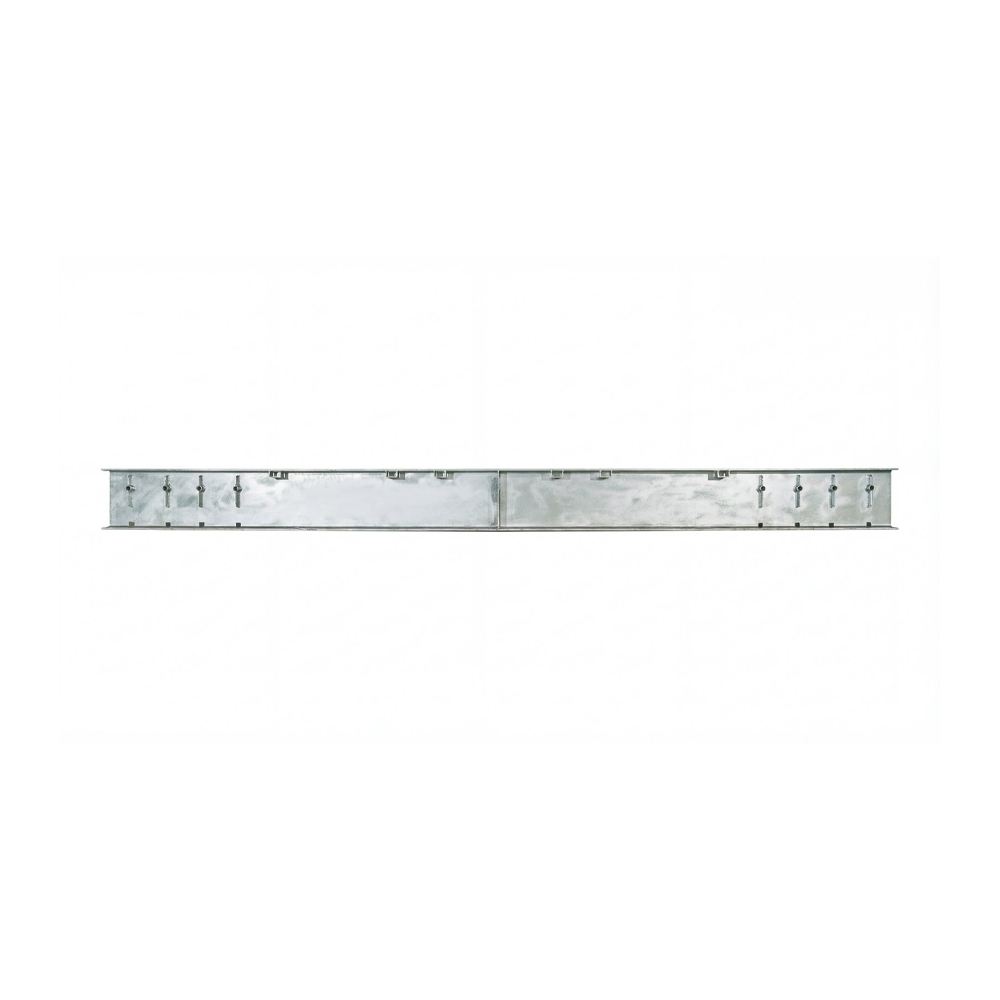

See DetailsThe Type HD200 crossbeam for Bailey bridges, with its precise dimensions, high-quality Q355B material, stable structural performance, and wide compatibility, has become a core component in medium-to-heavy-duty engineering projects. It inherits the advantages of prefabricated steel bridges, such as rapid and efficient assembly and strong interchangeability, while also achieving upgrades in strength and rigidity. This effectively meets the load-bearing requirements of various complex engineering projects, providing solid support for the safe and efficient progress of construction.
|
External Dimensions 1 (5.8m) |
5800*200*400mm |
|
External Dimensions 2 (6.2m) |
6200*200*400mm |
|
External Dimensions 3 (9.63m) |
9630*200*600mm |
|
Center Distance Dimensions |
250+230+250+4540+250+230+250mm |
|
Center Distance Dimensions |
250+230+250+7900+250+230+250mm |
|
Material |
Q355B |
