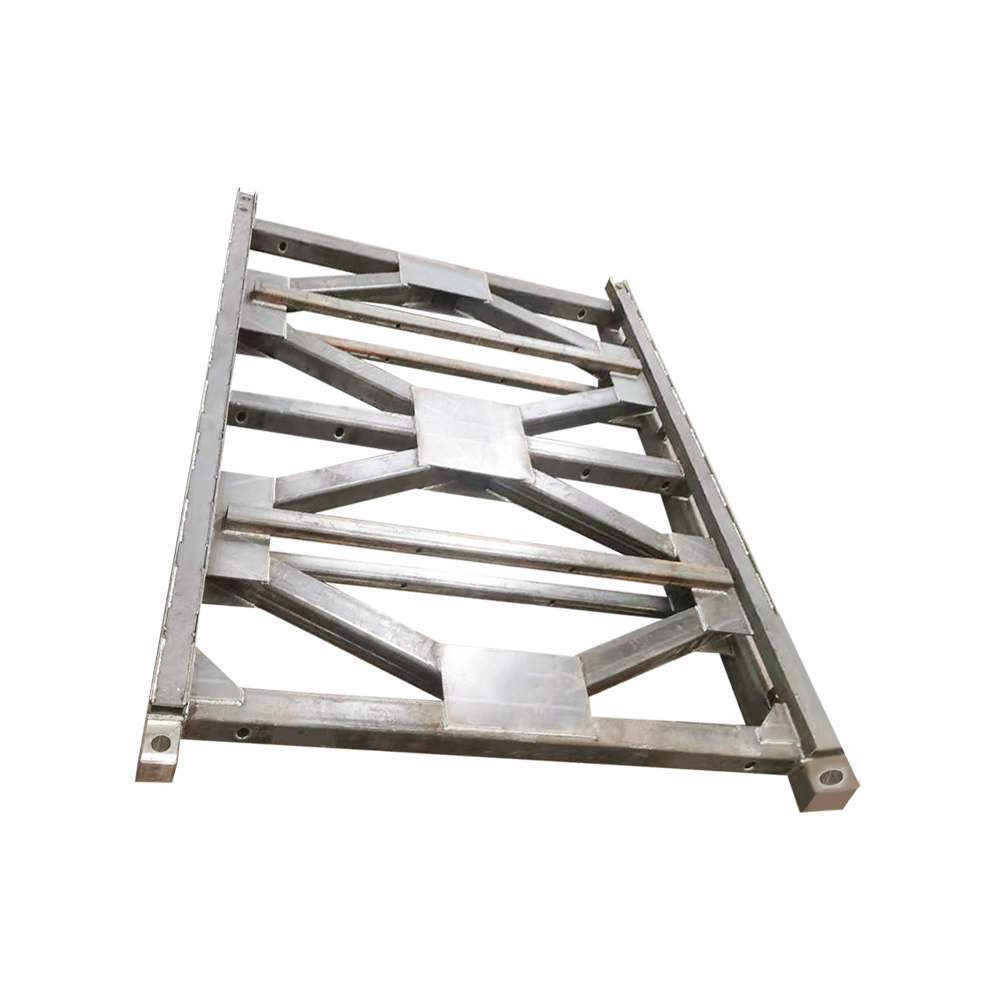

See DetailsThe reinforced Bailey bridge panels feature rectangular tubes for the vertical and diagonal members, and the channel steel is reinforced with externally attached steel plates. The overall structural bending moment is increased to 1593.2 KN.m, representing a 1.54-fold improvement in performance, and the shear force is increased to 384.6 KN, a 1.73-fold improvement in performance.
|
Outer Dimensions |
3163*2234*176mm |
|
Center Distance Dimensions |
3048*2134mm |
|
Material |
Q355B |
