ZK-Column Head Connector

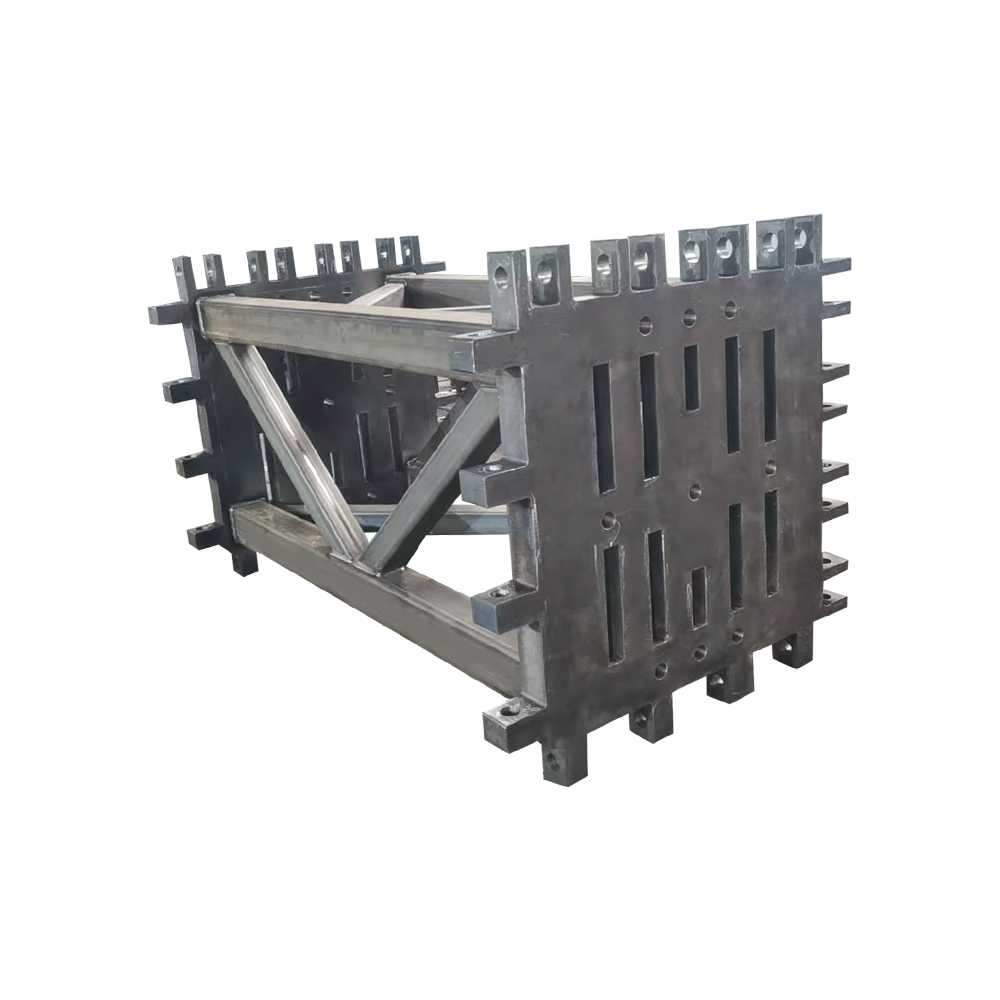

The ZK-Column Head Connector serves as the core foundation of the entire building construction platform.  The upper and lower bases are made of 100mm thick steel plates, and the vertical posts are made of 150*150 rectangular tubes. The entire structure is assembled by welding and weighs 2.5 tons per unit. Centered on the column head, each side can accommodate up to four rows of combined Bailey bridge panels simultaneously.

  • Hardware specifications
  • External Dimensions

     1340*1340*2234mm

    Center Distance Dimensions

     305*3*2134mm

    Material

     Q355B
